เมนบอร์ด Dell T5820 2CPU ราคาพิเศษ  แท้ ตรงรุ่น ตรงสเปก ลดราคาพิเศษเลยครับ

รายละเอียดสินค้า
  • SKU : 7544
  • DPN : 02KVM  X8DXD 6JWJY

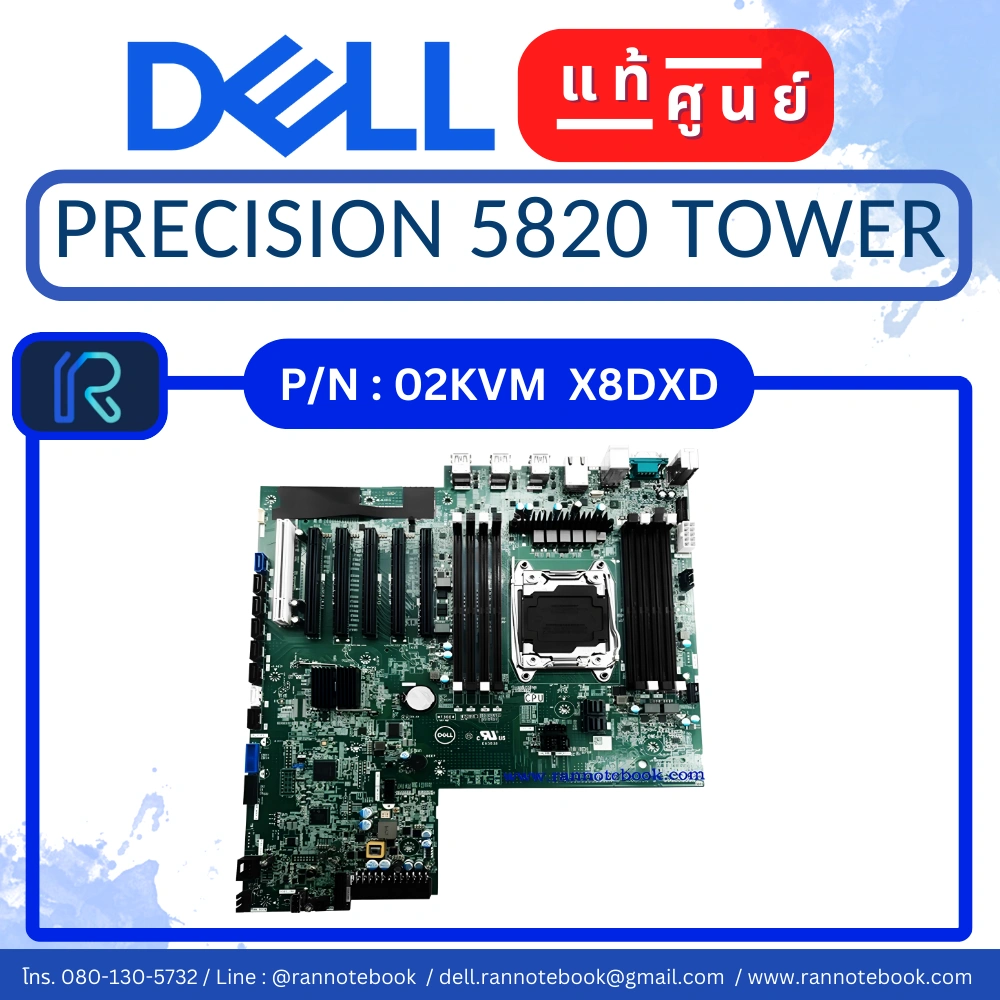

  • เมนบอร์ด Dell Precision 5820 Tower
  • ของแท้ รับประกัน 90 Day

กรุณาเช็คสต๊อก สินค้าก่อนโอนเงินครับ
Line ID @rannotebook
โทร :080-1305732


เป็นสินค้า พรีออเดอร์ ต้องเช็คของ และ เช็คราคาก่อนสั่งทุกครั้ง ราคาปรับขึ้นลง ตามค่าเงิน
กรุณาสอบถามทางไลน์

LED ERROR CODE Dell T5820
ใช้ตรวจสอบความผิดปกติของเมนบอร์ด Dell T5820 จากลักษณะของการกระพริบ ของ LED ที่หน้าเครื่อง

BLINKING PATTERN PROBLEM DESCRIPTION SUGGESTED RESOLUTION
AMBER WHITE
1 1 Faulty System board

To troubleshoot the issue with system board, contact Tech support.

1 2 Bad Power_Ctrl Cable, System Board or, PSU
  • Make sure Power_Ctrl Cable is connected.
  • Remove PSU and test BIST button outside of the system first, if failed, replace PSU. If not, install back the PSU and test the BIST button again.
  • If nothing works, contact Tech Support for system board replacement
1 3 Bad system board, Memory or Processor
  • If you can assist to troubleshoot, narrow down the issue by reseating memory and swapping a known good memory if available.
  • If nothing works, contact Tech Support
2 1 Bad Processor
  • CPU configuration activity is in progress or a CPU failure was detected.
  • Contact Tech Support
2 2 Motherboard: BIOS ROM failure
  • System is in Recovery Mode.
  • Flash latest BIOS version. If problem persists, contact Tech Support
2 3 No Memory
  • If customer can assist to troubleshoot, narrow down the issue by removing the memory module one by one to determine which one failed and swapping to a known good memory if available to confirm.
  • Contact Tech Support
2 4 Memory/RAM failure
  • If customer can assist to troubleshoot, narrow down the issue by removing the memory module one by one to determine which one failed and swapping to a known good memory if available to confirm.
  • Contact Tech Support
2 5 Invalid memory installed
  • Memory subsystem configuration activity is in progress. Memory modules have been detected but appear to be incompatible or in an invalid configuration.
  • If customer can assist to troubleshoot, narrow down the issue by removing one by one the memory on motherboard to determine which one failed.
  • Contact Tech Support.
2 6 Motherboard: Chipset
  • Fatal system board failure detected.
  • If customer can assist to troubleshoot, narrow down the issue by removing one by one the component on motherboard to determine which one failed.
  • If you identified any of the components failed, replace the Component.
  • Contact Tech Support.
3 2 PCI Device or Video
  • PCI device configuration activity is in progress or PCI device failure was detected.
  • If you can assist to troubleshoot, narrow down the issue by reseating PCI card and removing one by one to determine which card failed.
  • Contact Tech Support.
3 3 BIOS Recovery 1
  • System is in Recovery Mode.
  • Flash latest BIOS version. If problem persists, contact Tech Support
3 4 BIOS Recovery 2
  • System is in Recovery Mode.
  • Flash latest BIOS version. If problem persists, contact Tech Support
4 4 Riser board issue
  • Power issue on Riser second CPU board
4 6 RAID Volume degraded
  • RAID volume is degraded.
  • If you can assist to troubleshoot, us F12 menu to enter Device Configuration tab. Rebuild the RAID volume if possible
  • Contact Tech Support.
4 7 System Side cover is missing
  • System side cover(either left or right) is missing.
  • Unplug power, Install back all side covers back to the chassis and plug in power.
  • Contact Tech Support.
